Default 3600 FEET below earth's surface... PICS!

Well as some already know I am back working underground after 8 months finishing up my schooling for HD Technician. I had to move 30 hours north for the job. I said in my last post I would get some pics of what its like under there and the machinery used to extract nickel ore thousands of feet underground. all of them are of the shop I work in at 3600 feet. I work 11.5 hour shifts, 5 days on 5 off. Theres lots of pics so enjoy, If anyone ou want pictures of other things let me know and next weekend when I go back to work I will try to get them, its hard to get them in the drifts because there is no light other than from a mine cat or a hard hat light and my iphone doesnt pic up the light very well. Any other questions of how it all works just ask, I will try to explain along the way

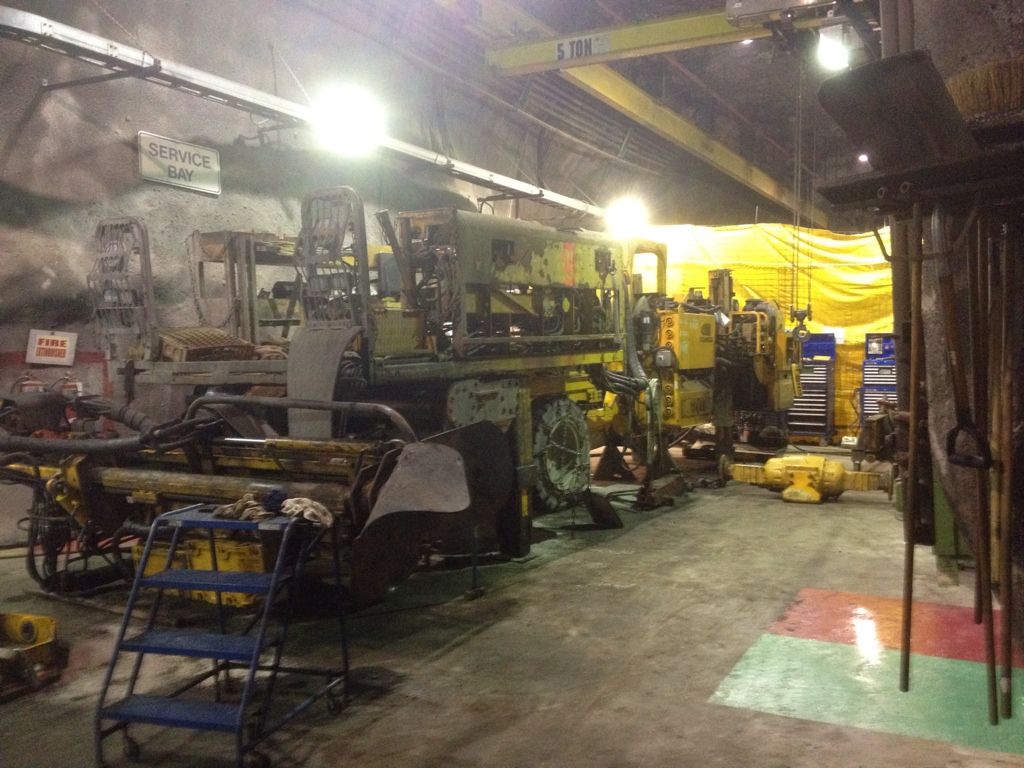

the shop, kinda empty for a few minutes between machines so It was a good time to get a pic, this shop has 2 - 20 ton cranes running on the same track

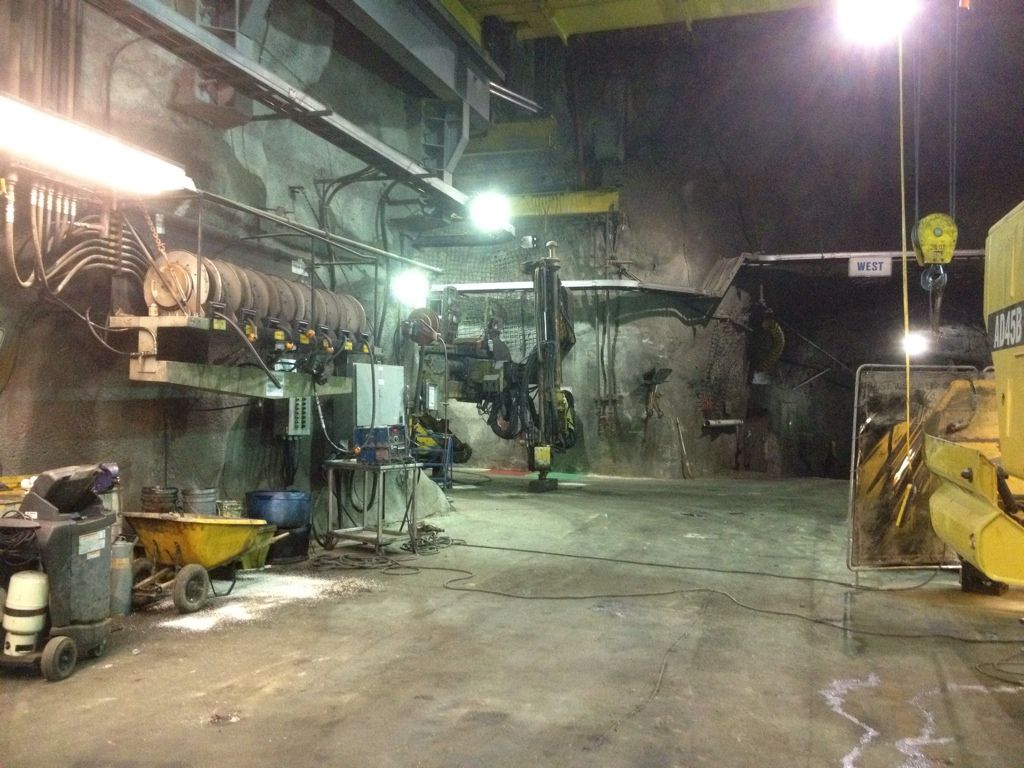

facing back the other way

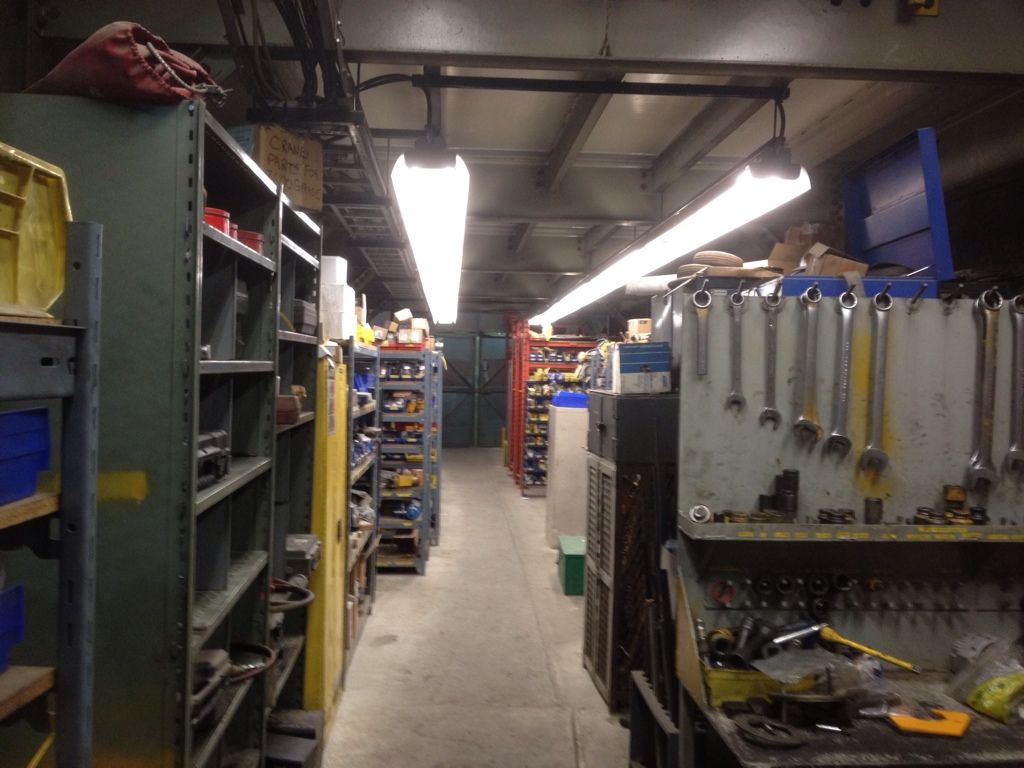

Tool crib, has most bigger tools and specialty tools, along with many different parts for different machines

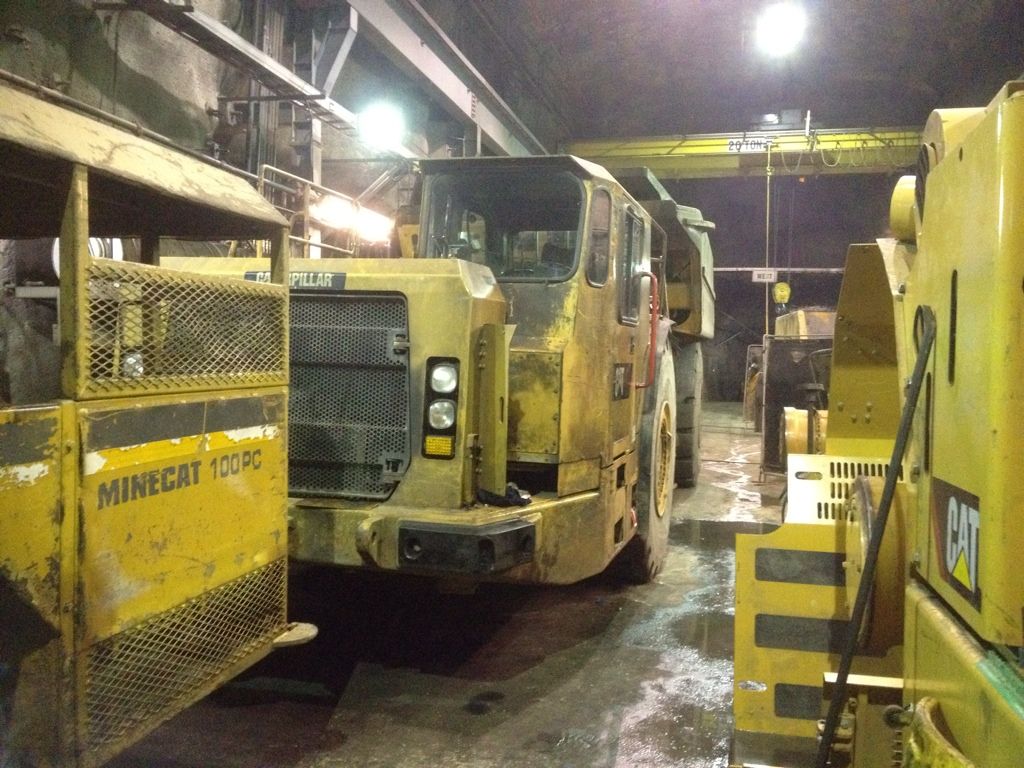

Mine cat, personnel carrier, used to getting us to the shop, about a 15 minute ride from where we get off the cage at 2400 level

oil cubes, used to store the different types of oil (engine, tranny, diff etc.) also to store used oil

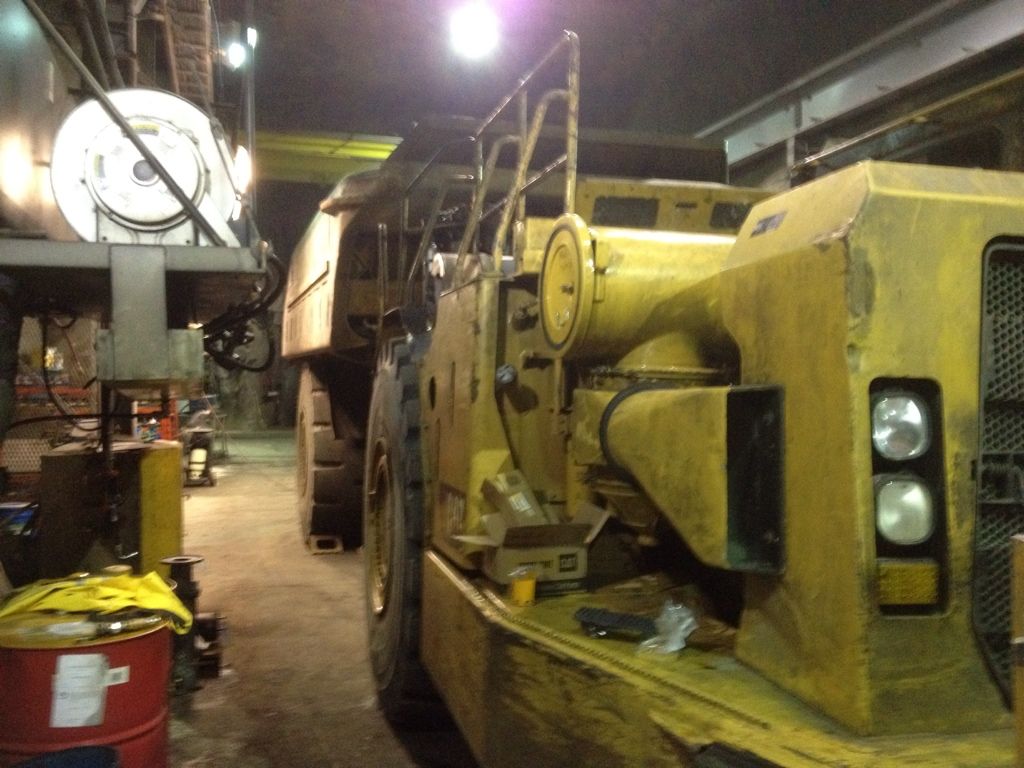

45 ton rock truck (holds 45 tons of ore or rock) it does not have a dump box because of the height of the drifts (tunnels), it has an ejector that pushes the ore out the back

again

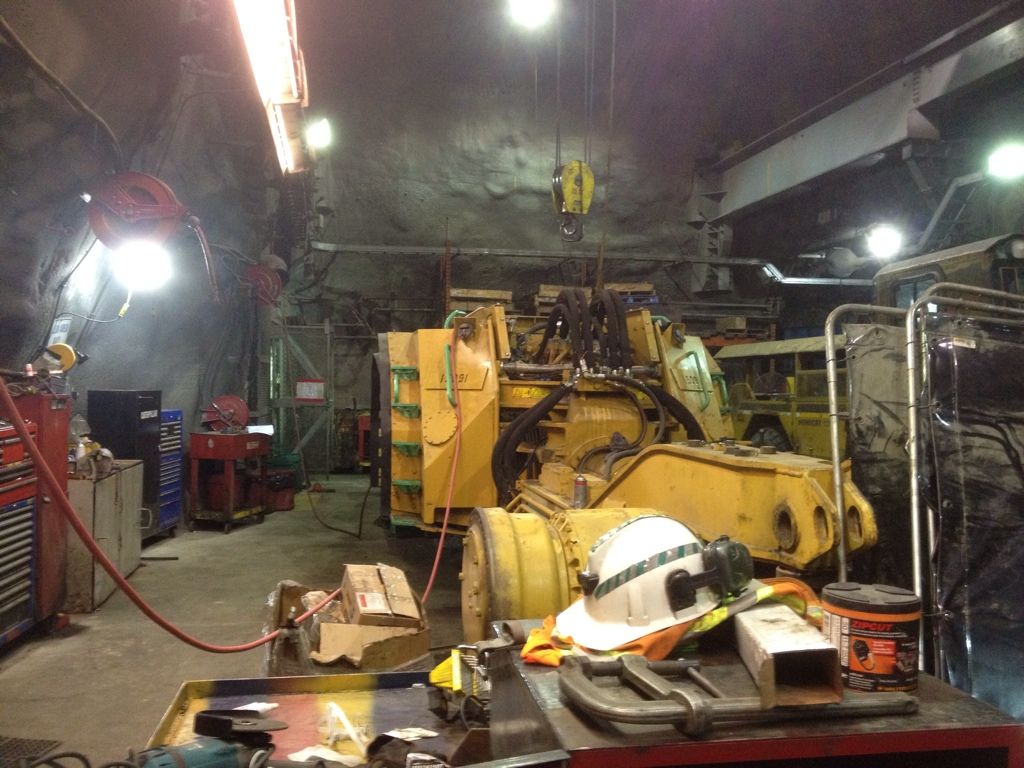

Brand new 45 ton getting put together, it has to be cut up on surface so that it can be hoisted down the shaft and then re welded and put back together under ground

back end of the new 45 ton

the box comes in 4 different pieces and has to be welded back together, the ejector as well

hose making room, for making hydraulic hoses

Atlas Copco 2 boom jumbo, this thing goes into a new area and drills into the face of the drift (the end of the drift), drills about 80 or so holes give or take and then the loud it with explosives) the booms swivel in just about any position

from the cab of the jumbo

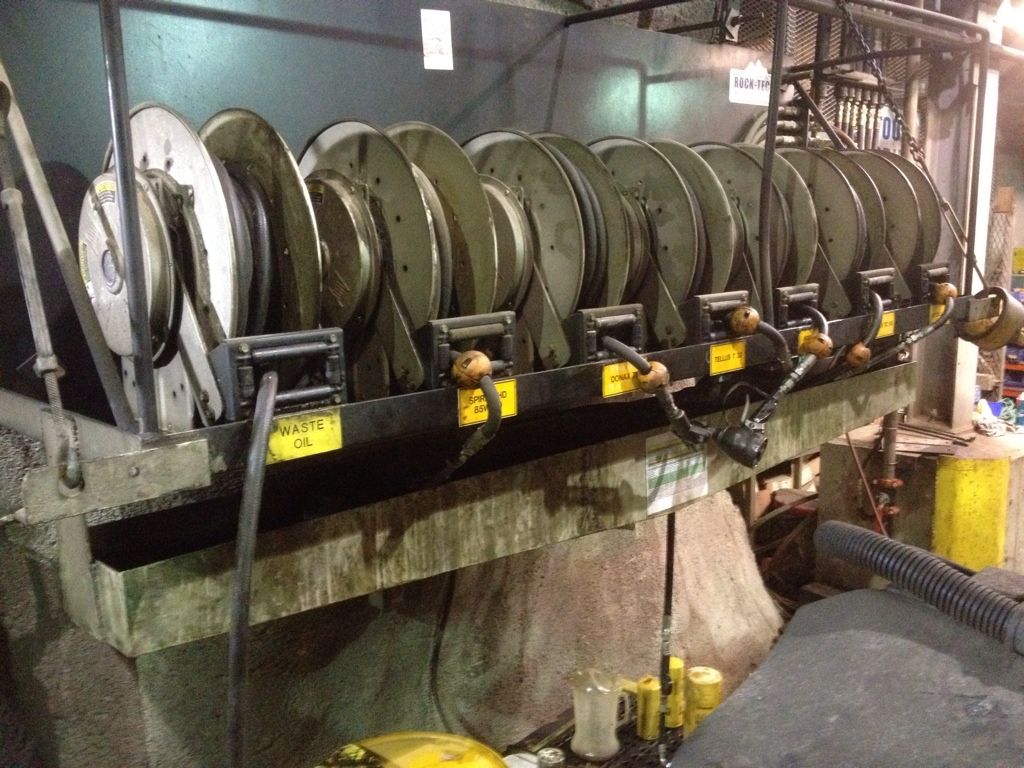

hoses reils for putting the different oils in the machines, no carrying pails here!

CAT 8 yard scoop tram, used after a blast to go and muck out the area (scoops up all of the ore, or rock)

blown tire, this operator blew 3 of them in 2 days LOL and they wonder why we have so many mechanics in this shop
__________________
2013 QC SPORT 4x4, 6 spd Hemi. 3.92, heated - ventilated seats, alpine 9 spkr w/ sub, sun roof, nav,

Mods : 20x9 fuel Kranks, S&B CAI, 20% tint, Ram rubber mud flaps, Lumens 35w 6000k canbus low beams, tri fold tonneau, led plate & cargo lights, custom led bed lighting

Last edited by 2011 ASSAULT 800; 05-28-2012 at 12:04 PM.
Reply With Quote
Sponsored links
  #2
Old 05-28-2012, 11:57 AM
2011 ASSAULT 800's Avatar
2011 ASSAULT 800 2011 ASSAULT 800 is offline
Dodge Ram Forum Senior Member!

Join Date: Jun 2011
Location: Sudbury, Ontario
Age: 24
Posts: 3,063
Gender: Male
Vehicle: 2013 Ram 1500
Trim Level: Quad Cab Sport
Color: black
Engine: 2009-20?? 345ci (5.7L) Hemi V8 390hp 407lb/ft
Rep Power: 5
Rep:249
2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about
Default

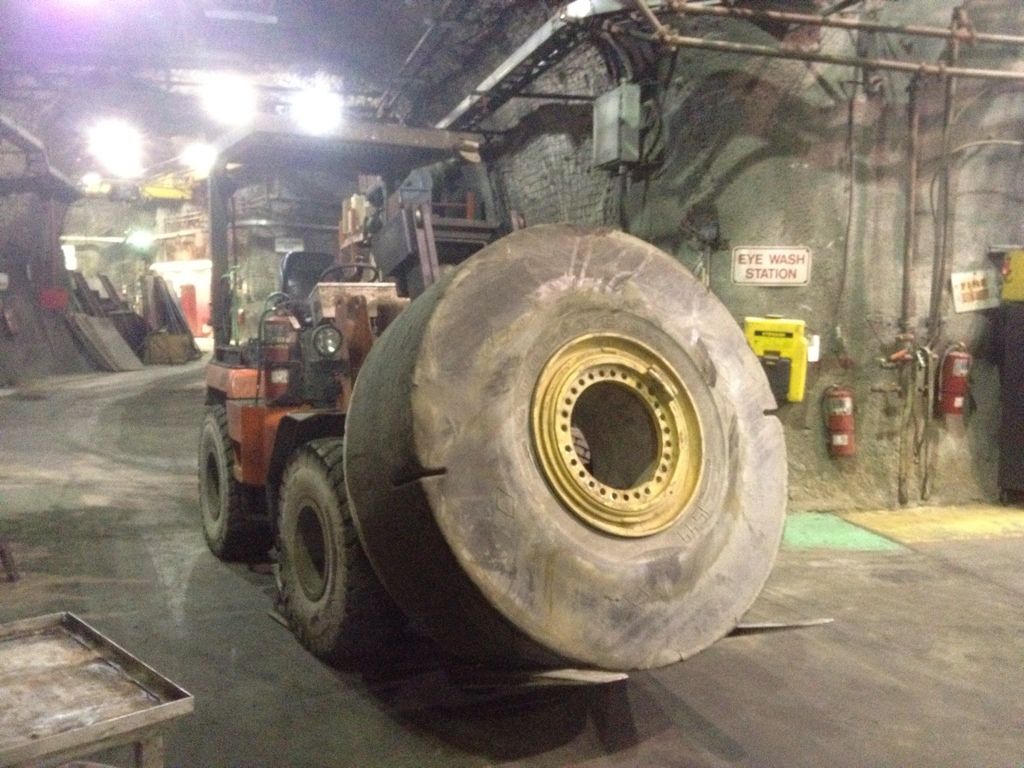

changine the tire on the scoop, gives you an idea of size


Maclean rock bolter, used after the scoop is done, this thing puts thick screen and rock bolts into the drifts to prevent collapse and falling rock, the back end of the machine is a sizer lift the lifts up maybe 20 feet or so, the boom the does the drilling and bolting swivels all over the places

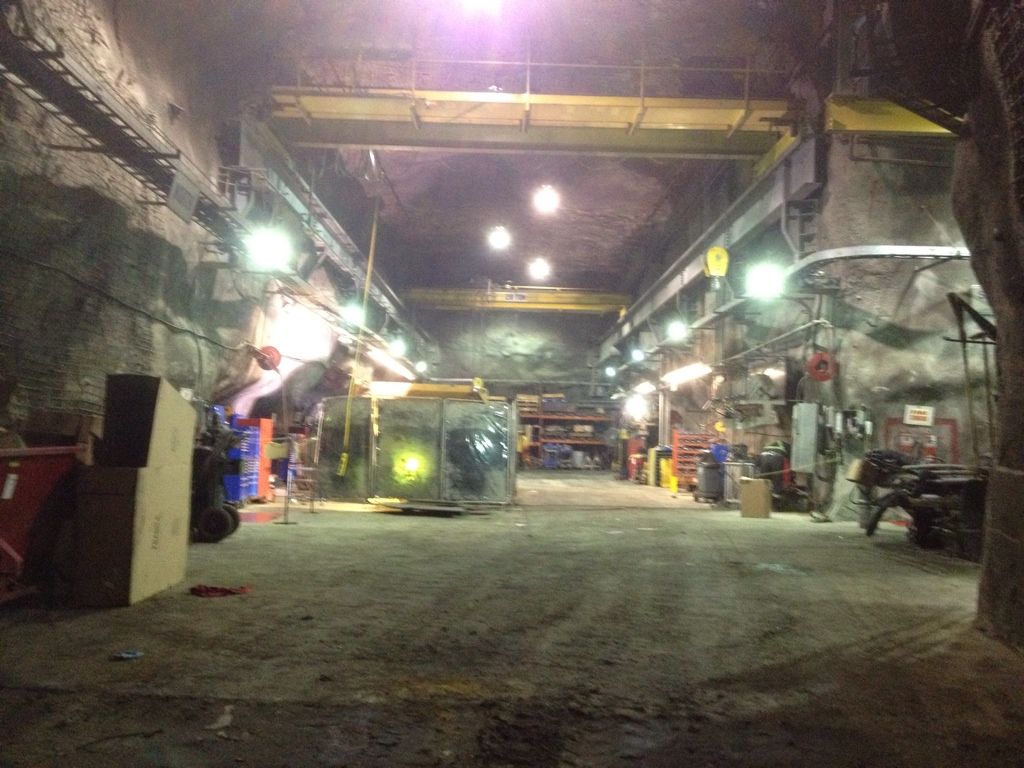

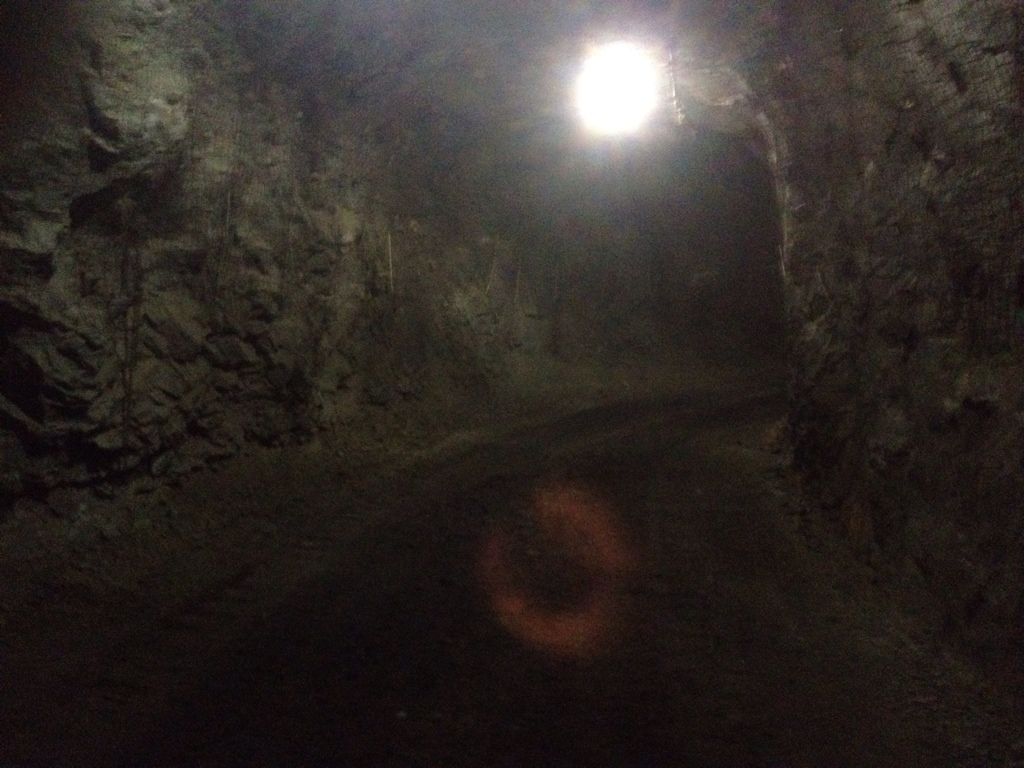

the drift heading into the shop, this one was lit so the picture came out ok, out of the shop there is next to no light other than your hardhat or from a vehicle, note my hard hate light on the ground

down into the dark ness


I think thats about, there are some other machines like the forklift carrying the tire and different types of mine cats but these are the main ones we see everyday
__________________
2013 QC SPORT 4x4, 6 spd Hemi. 3.92, heated - ventilated seats, alpine 9 spkr w/ sub, sun roof, nav,

Mods : 20x9 fuel Kranks, S&B CAI, 20% tint, Ram rubber mud flaps, Lumens 35w 6000k canbus low beams, tri fold tonneau, led plate & cargo lights, custom led bed lighting
Reply With Quote
  #3
Old 05-28-2012, 01:05 PM
ShawnC13's Avatar
ShawnC13 ShawnC13 is offline
Team Bully



Join Date: Dec 2011
Location: Victoria BC Canada
Age: 41
Posts: 25,698
Gender: Male
Vehicle: 2008 Dodge Ram 1500 QC TRX4
Trim Level: SXT
Color: Flame Red
Engine: 2003-2008 345ci (5.7L) Hemi V8 345hp 375lb/ft
Rep Power: 18
Rep:1711
ShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant futureShawnC13 has a brilliant future
Default

Very Cool thanks for the pics
Reply With Quote
  #4
Old 05-28-2012, 01:33 PM
nYmPhMoBiLe08's Avatar
nYmPhMoBiLe08 nYmPhMoBiLe08 is offline
Dodge Ram Forum Senior Member!

Join Date: Dec 2010
Location: Grand Junction, CO
Posts: 354
Gender: Male
Vehicle: 2008 Dodge Ram
Trim Level: Big Horn
Color: Metallic Gray
Engine: 2003-2008 345ci (5.7L) Hemi V8 345hp 375lb/ft
Rep Power: 4
Rep:75
nYmPhMoBiLe08 will become famous soon enough
Default

Wow thats awesome thanks for sharing! I was riding dirt bikes with some buddies yesterday out in the desert and came across an old coal mine that was filled with concrete after about 30 yards! Snapped some pics too!
__________________
~Landon~

Current MODS: | Bilstein 5100's (Front) | Monroe Coil Overs (Rear) | Tow Mirrors | Husky Tool Box | Plasti-Dipped Badges/Gas Cap | 295/70/17" Nitto Trail Grapplers | 17X9" Fuel Boost Wheels | 3" DMH Cutout | RT Stripes \\ | WeatherTech Floor Liners |
Reply With Quote
  #5
Old 05-28-2012, 02:23 PM
2011 ASSAULT 800's Avatar
2011 ASSAULT 800 2011 ASSAULT 800 is offline
Dodge Ram Forum Senior Member!

Join Date: Jun 2011
Location: Sudbury, Ontario
Age: 24
Posts: 3,063
Gender: Male
Vehicle: 2013 Ram 1500
Trim Level: Quad Cab Sport
Color: black
Engine: 2009-20?? 345ci (5.7L) Hemi V8 390hp 407lb/ft
Rep Power: 5
Rep:249
2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about
Default

Quote:
Originally Posted by nYmPhMoBiLe08 View Post
Wow thats awesome thanks for sharing! I was riding dirt bikes with some buddies yesterday out in the desert and came across an old coal mine that was filled with concrete after about 30 yards! Snapped some pics too!
they usually fill them in too keep people from getting hurt, because there is no ramp from surface when they are done with a mine like the one I am in they fill it with water. Glad you liked the pics, was trying to share something that not many get too see, the pictures dont do it much justice to the size and scale of stuff down there, how loud the machines, especially the scoops are. I will try to get more pics as time goes on and I see new things under there, I dont like bringing my phone underground for the risk of destroying it
__________________
2013 QC SPORT 4x4, 6 spd Hemi. 3.92, heated - ventilated seats, alpine 9 spkr w/ sub, sun roof, nav,

Mods : 20x9 fuel Kranks, S&B CAI, 20% tint, Ram rubber mud flaps, Lumens 35w 6000k canbus low beams, tri fold tonneau, led plate & cargo lights, custom led bed lighting
Reply With Quote
  #6
Old 05-28-2012, 02:59 PM
brad12kx's Avatar
brad12kx brad12kx is offline
Just some guy in Canada



Join Date: Apr 2010
Location: Brandon, MB
Posts: 22,792
Gender: Male
Vehicle: 2010 Ram 1500 QC
Trim Level: Sport
Color: Black
Engine: 2009-20?? 345ci (5.7L) Hemi V8 390hp 407lb/ft
Rep Power: 21
Rep:2581
brad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond reputebrad12kx has a reputation beyond repute
Default

Awesome pics! Thanks for sharing. It's nice to see the stuff that's happening now instead of the tours that only show what they 'used' to do.

It amazes me that the scoop trams have to be cut up on the surface. I would have thought that they would come form CAT disassembled for final assembly underground. The mine in Thompson is one of the larger mines, so if cutting it up is required, I'd venture to guess that this is common practice at most if not all underground mines.
__________________
brad

Interested in one of my mods?
If it's underlined, it's a link to that mods thread.

2010 Ram 1500 Hemi Sport, 3.92, Leather, NAV, Alpine, Sunroof, Trailer tow, Brake Contoller, Rear Cam
Mods - 3M clear protect, Decals removed, Electric Tailgate Lock, Tow Hooks, Skid Plates, Bed Rug, Pace Edwards Bedlocker Electric Tonneau, Timbren Rear SES, Tinted Tail Lights, Debadged, Grill Blacked Out, Shorty Antenna, Black Chromed Emblems, Lightly tinted front windows, DS Predator, Cabin Air Filter, K&N Drop In, Mufflex (Magnaflo) DOD24M, Sonnax line pressure booster, Volant CAI
Reply With Quote
  #7
Old 05-28-2012, 03:24 PM
2011 ASSAULT 800's Avatar
2011 ASSAULT 800 2011 ASSAULT 800 is offline
Dodge Ram Forum Senior Member!

Join Date: Jun 2011
Location: Sudbury, Ontario
Age: 24
Posts: 3,063
Gender: Male
Vehicle: 2013 Ram 1500
Trim Level: Quad Cab Sport
Color: black
Engine: 2009-20?? 345ci (5.7L) Hemi V8 390hp 407lb/ft
Rep Power: 5
Rep:249
2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about
Default

Quote:
Originally Posted by brad12kx View Post
Awesome pics! Thanks for sharing. It's nice to see the stuff that's happening now instead of the tours that only show what they 'used' to do.

It amazes me that the scoop trams have to be cut up on the surface. I would have thought that they would come form CAT disassembled for final assembly underground. The mine in Thompson is one of the larger mines, so if cutting it up is required, I'd venture to guess that this is common practice at most if not all underground mines.
Thanks Brad, there are 3 mines in Thompson, and cutting them up on surface is a pretty common practice, some of them may come disassembled already but its the company that deicdes that, we get it in pieces either way, the only way they wouldnt get cut up at other mines is if that mine has a portal ( a tunnel running straight from surface). CAT sends a guy from Toromont in Thompson to help put it together, contract welders from a local company came down to weld the box and ejector together as well. I was told that sometimes cat sends people right from its main headquarters in Australia to put the trucks and scoops together.

It would be cool if big companies like this one could do tours, maybe a day or 2 out of every year and make it available to the public to go down with safety trainers and see what actually goes on
__________________
2013 QC SPORT 4x4, 6 spd Hemi. 3.92, heated - ventilated seats, alpine 9 spkr w/ sub, sun roof, nav,

Mods : 20x9 fuel Kranks, S&B CAI, 20% tint, Ram rubber mud flaps, Lumens 35w 6000k canbus low beams, tri fold tonneau, led plate & cargo lights, custom led bed lighting
Reply With Quote
  #8
Old 05-28-2012, 06:11 PM
Warlock III's Avatar
Warlock III Warlock III is offline
Is a sloppy perfectionist

Join Date: Aug 2010
Posts: 6,229
Gender: Male
Vehicle: 1995 Ram 1500
Engine: 1994-2001 318ci (5.2L) Magnum V8 220hp
Rep Power: 10
Rep:1694
Warlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant futureWarlock III has a brilliant future
Send a message via AIM to Warlock III Send a message via Yahoo to Warlock III
Default

I'm getting more info out of this just by reading the thread...carry on...
__________________
Remove the head from a serpent, and the body dies. Remove a head from a Hydra and two more grow to take its place.
Reply With Quote
  #9
Old 05-28-2012, 06:45 PM
RansRAM's Avatar
RansRAM RansRAM is offline
Addicted to the Z



Join Date: Feb 2010
Location: Mississauga, Ontario, Canada
Age: 54
Posts: 12,149
Gender: Male
Vehicle: 2010 RAM 1500
Trim Level: Quad Cab 4X4 Sport
Color: Brilliant Black
Rep Power: 15
Rep:2453
RansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond reputeRansRAM has a reputation beyond repute
Default

Very cool pics, thanks as well for sharing them. It's amazing the amount of machinery you have down there.
__________________
BT CC / Hood Kit, LED Tails, Recon 3rd Brake & Xtreme LightBar, Black Aluminum Side Steps, Leer 700, DeeZee Tailgate Assist, MOPAR Valve Caps, Lighted RAM hitch cover, Front Tow Hooks and Bed Post Hide-a-Hooks, Tints (20% frt, 35% rear and slider), Painted Engine Cover/Brake Calipers, K&N Drop in,OEM Fender Flares/ bug deflector, FM 40, SC Cortex, Oracle H11 LED Heads, 4000k Putco Fogs, LED Interior Lights, Honeycomb Grill, Bilstien 5100's.
Reply With Quote
  #10
Old 05-28-2012, 08:56 PM
2011 ASSAULT 800's Avatar
2011 ASSAULT 800 2011 ASSAULT 800 is offline
Dodge Ram Forum Senior Member!

Join Date: Jun 2011
Location: Sudbury, Ontario
Age: 24
Posts: 3,063
Gender: Male
Vehicle: 2013 Ram 1500
Trim Level: Quad Cab Sport
Color: black
Engine: 2009-20?? 345ci (5.7L) Hemi V8 390hp 407lb/ft
Rep Power: 5
Rep:249
2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about2011 ASSAULT 800 has a spectacular aura about
Default

Quote:
Originally Posted by Warlock III View Post
I'm getting more info out of this just by reading the thread...carry on...
was more of the type of thread to show people something they have never seen before... brad said a while back he wanted to see more pics from underground, I like seeing new things so I figured others would too... and on top of that I am in the middle of no where with nothing to do so I figured I would share the only excitement I have in this chithole.... I want to go home
__________________
2013 QC SPORT 4x4, 6 spd Hemi. 3.92, heated - ventilated seats, alpine 9 spkr w/ sub, sun roof, nav,

Mods : 20x9 fuel Kranks, S&B CAI, 20% tint, Ram rubber mud flaps, Lumens 35w 6000k canbus low beams, tri fold tonneau, led plate & cargo lights, custom led bed lighting
Reply With Quote
