Discussion Starter · #1 · (Edited)
I recently completed installing a compressor / air tank / remotely controlled air bag system / on my truck. The compressor and tank reside on an aluminum diamond plate deck suspended between the frame rails just below the radiator. The aluminum suspension components (brackets and bolts) are insulated from the steel frame rails in order to prevent corrosion due to current transfer between dissimilar materials.

Tank pressure is maintained between 110 and 150 PSI in the 2-1/2 gallon tank by a combination relay / pressure switch that is activated by a “keyed” 12 volt line. The tank and compressor are both manufactured by Viair. The compressor is rated to operate up to a 33% duty cycle at 4 CFM / 90 PSI. A quick release chuck is connected to one of the tank ports for emergency tire inflation. A pressure regulator is connected to another. The regulator is set to send 90 PSI to the control mechanism for the air bags.

Pressure in the AirLift 5000 air bags is regulated by a (modified) remotely controlled AirLift “Wireless Air” system. Stock AirLift “Wireless Air” system components normally consist of a sun visor mounted remote unit with a digital display, a compressor sufficient to provide up to 100 PSI to a set of air bags, a relay / wiring harness, and a manifold configured with an inlet port and two outlet ports. The manifold is controlled by the sun visor mounted remote. In my modified configuration the AirLift compressor was replaced by an air solenoid valve.

The wiring harness and solenoid were mounted in a cast aluminum “Project Box” and the manifold was mounted onto an aluminum bracket, both of which are located on the inside of the rocker panel about the middle of the rear door on the drivers side. The manifold mount is pop riveted directly to the body shell, however the project box is mounted onto battens that have countersunk mounting screws installed. The countersunk screws are prevented from turning in the battens by the use of backing nuts between the batten itself and the back of the project box. The battens are, in turn, pop riveted to the body shell. This allows for easily removing the whole project box or just the components if any maintenance is required.

Special thanks go to Donovan at Suspension Connection for working with me to recommend products and to set me up with a “custom” configuration, also to Top Fuel Harley Pilot Greg Groves for cutting out the aluminum plate, my neighbor Mike for advice, Troy, Service Department Manager at Hayes Instrument Company, for checking my wiring ideas, and the expert help at AirLift provided by Ben, Chris, and Walt for outstanding technical support.

A photographic essay with brief comments (above the relevant pictures) follows.

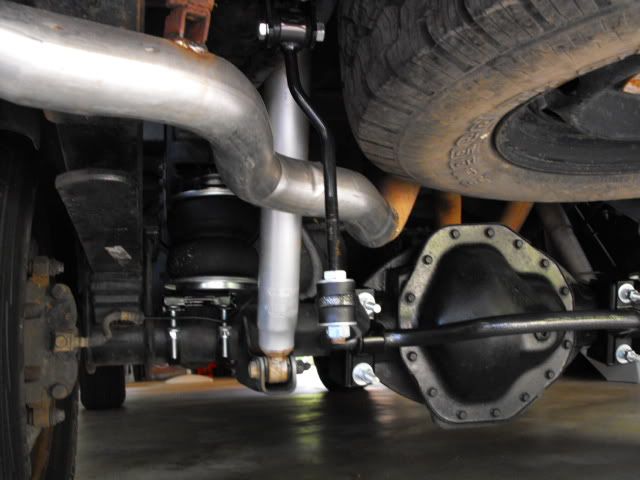

Here's one of the air bags that needs controlling. The air bags, tailpipe modification, and anti sway bar were earlier projects.

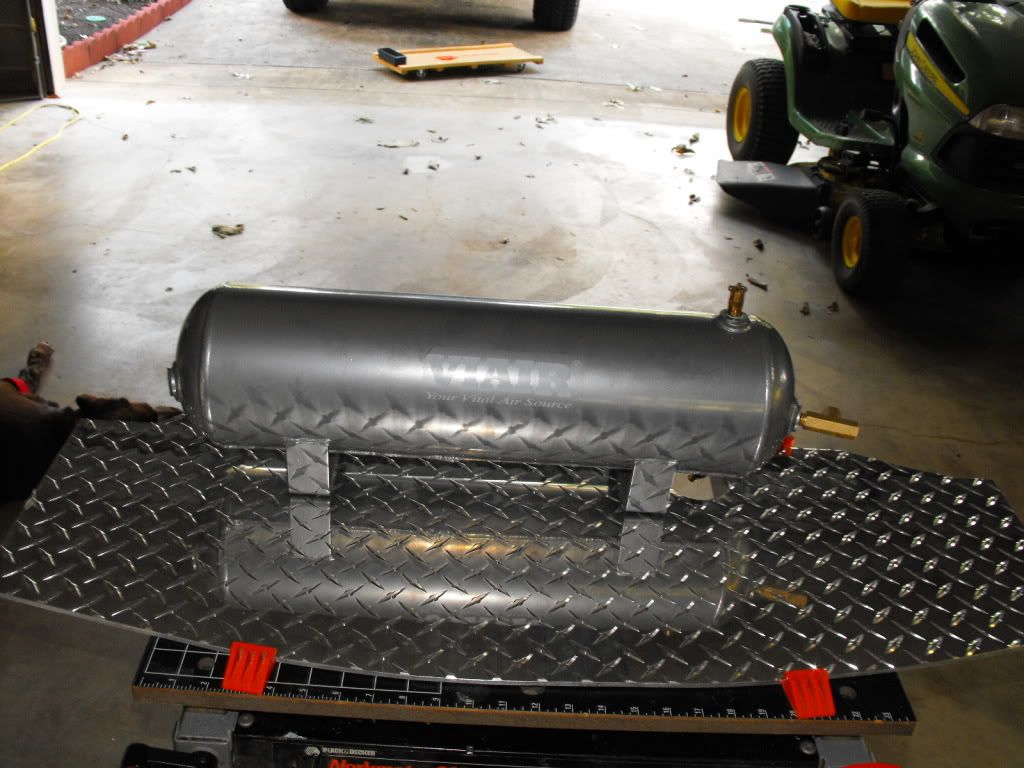

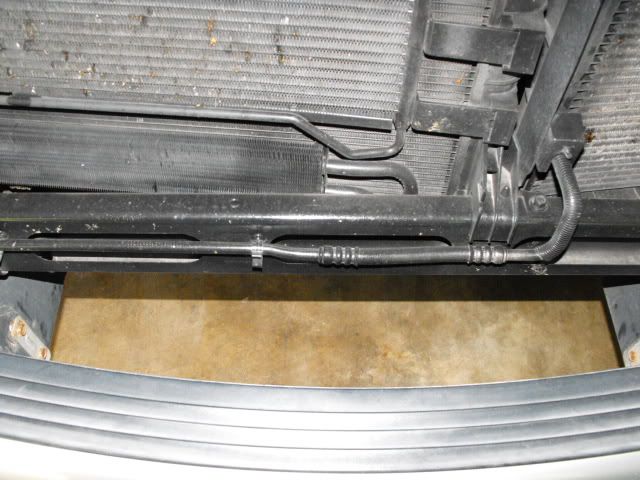

This looks like a likely place for a compressor and air tank.

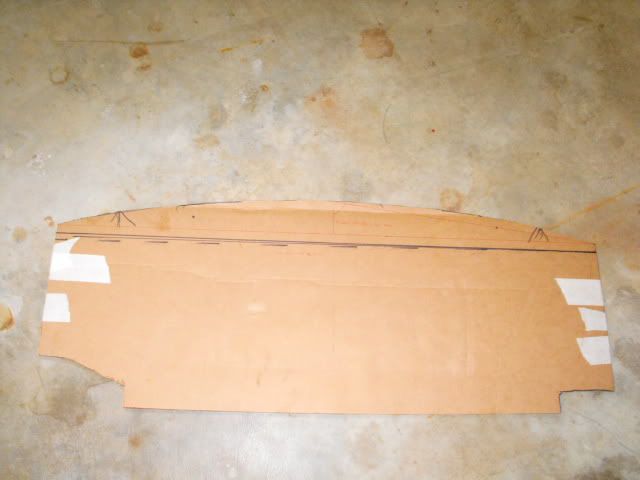

First, a cardboard pattern.

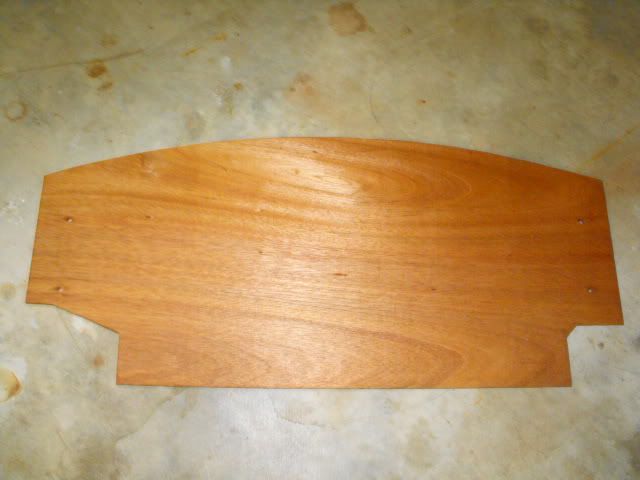

Next, a luan plywood pattern / test piece.
I installed this and drove for many miles on hot summer days to make sure no heating problems cropped up.


Heating test complete - now the aluminum plate. That wooden creeper in the background is one more hard item to find nowadays! I got this one from Car Quest.

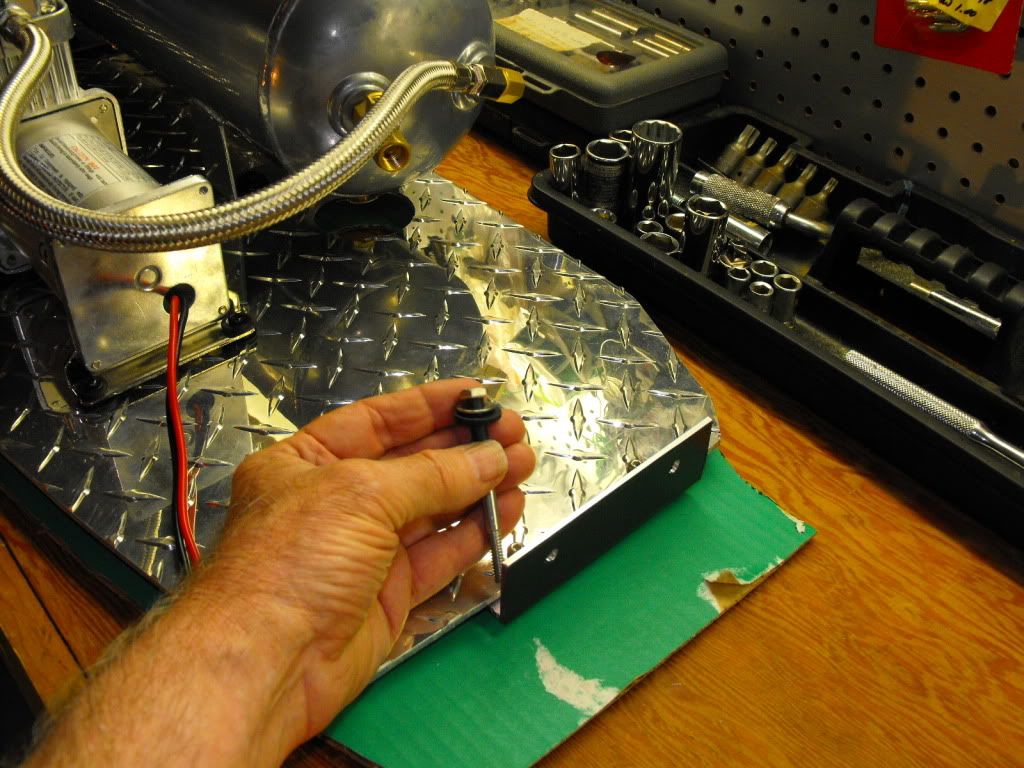

Insulated bolt and bracket.


Test run.

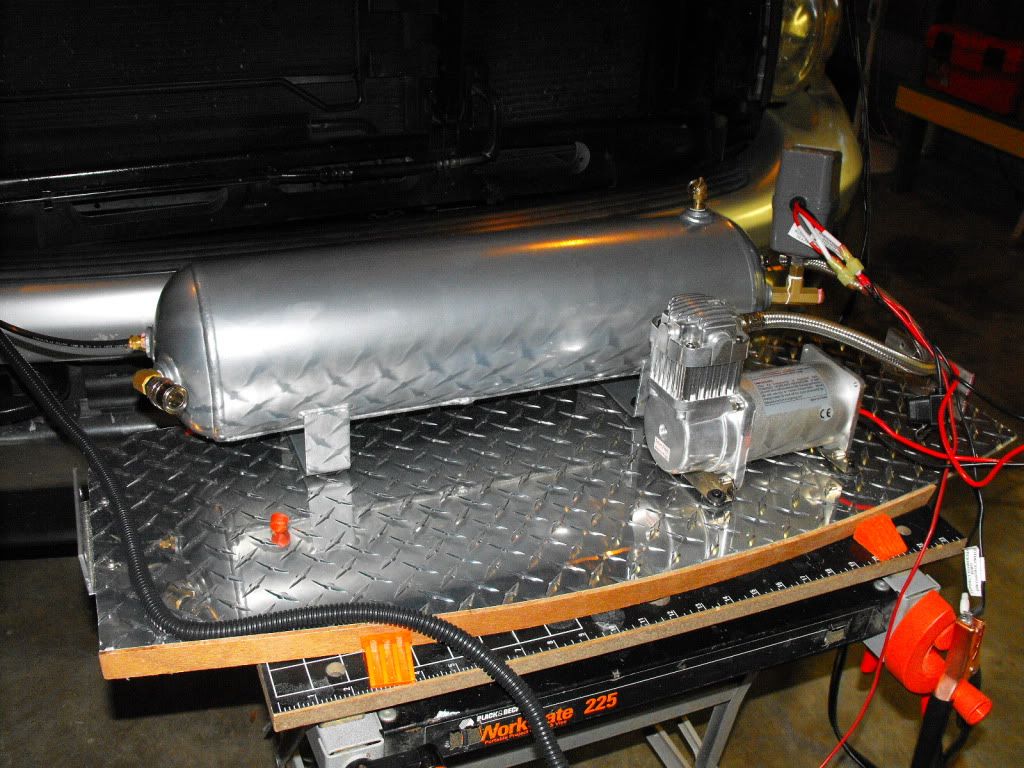

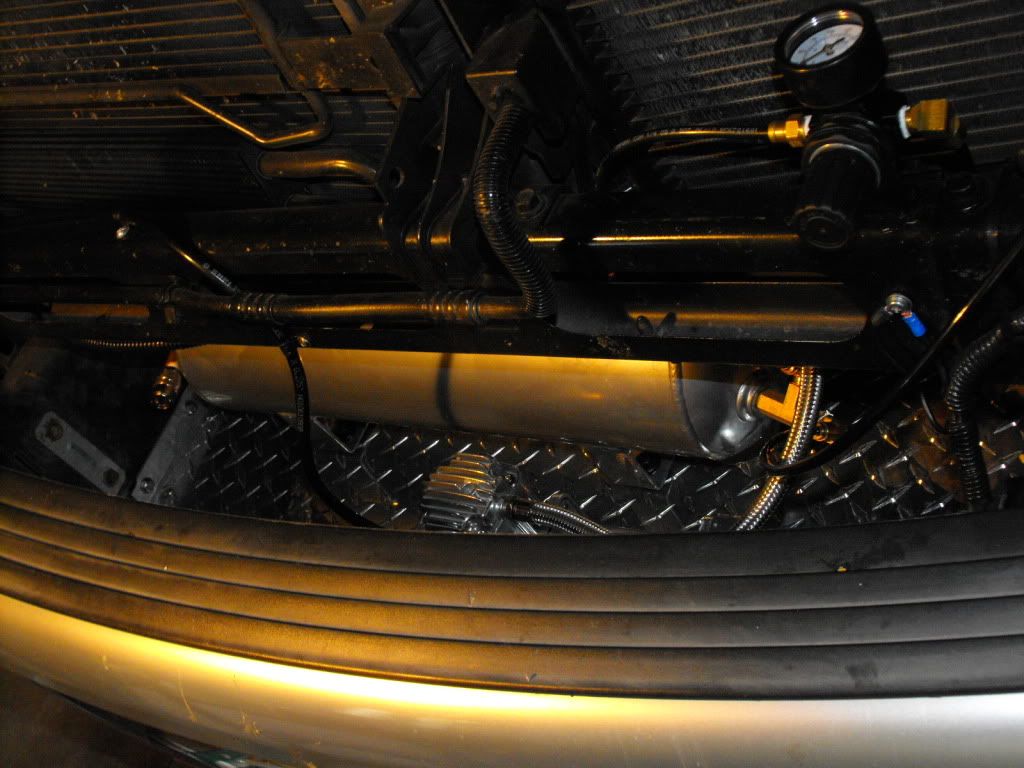

View from top.

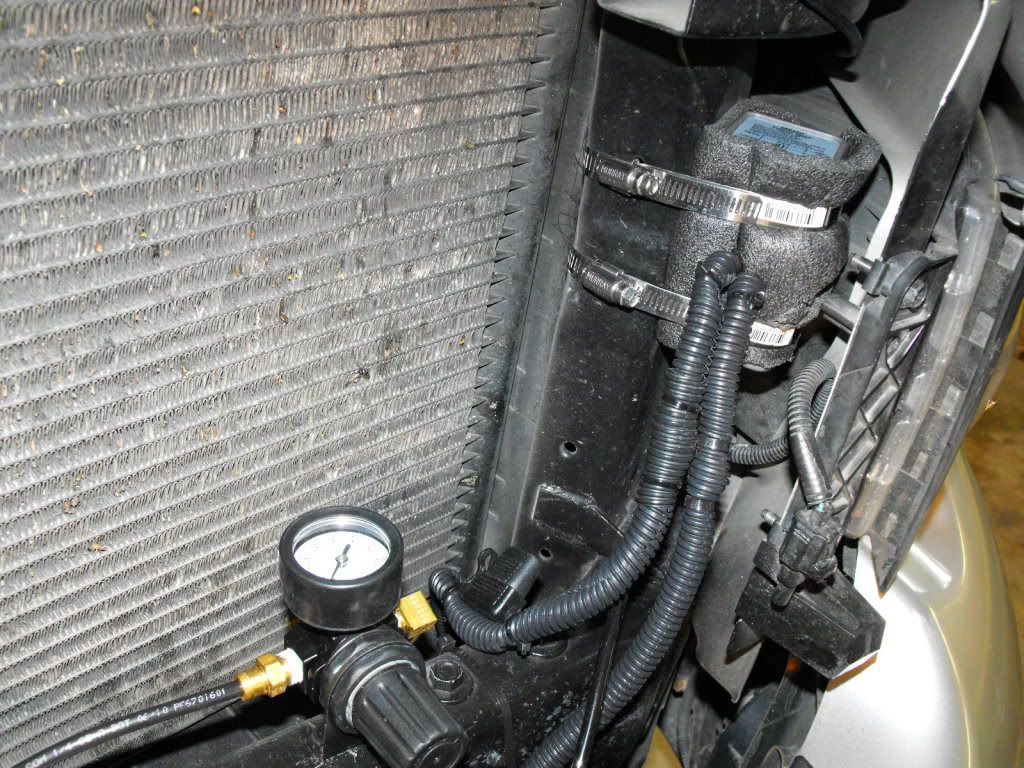

Pressure regulator and relay / pressure switch view. It's not real easy to find a spot to put anything on a modern vehicle.

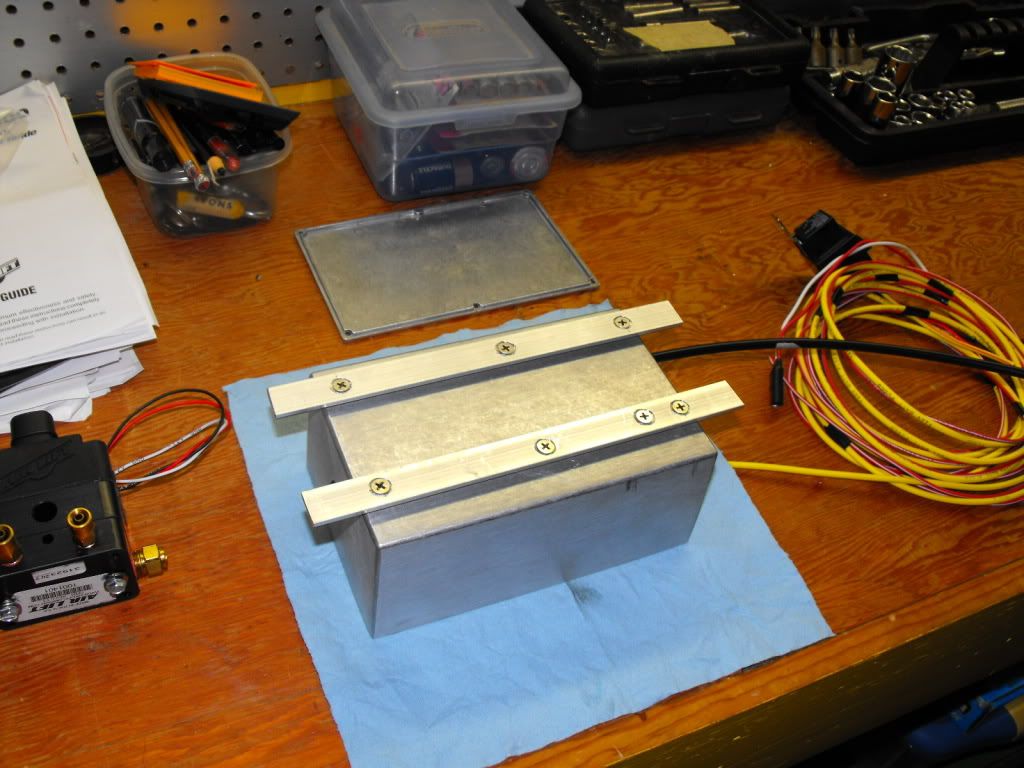

Countersunk screws with backing nuts holding battens on project box.


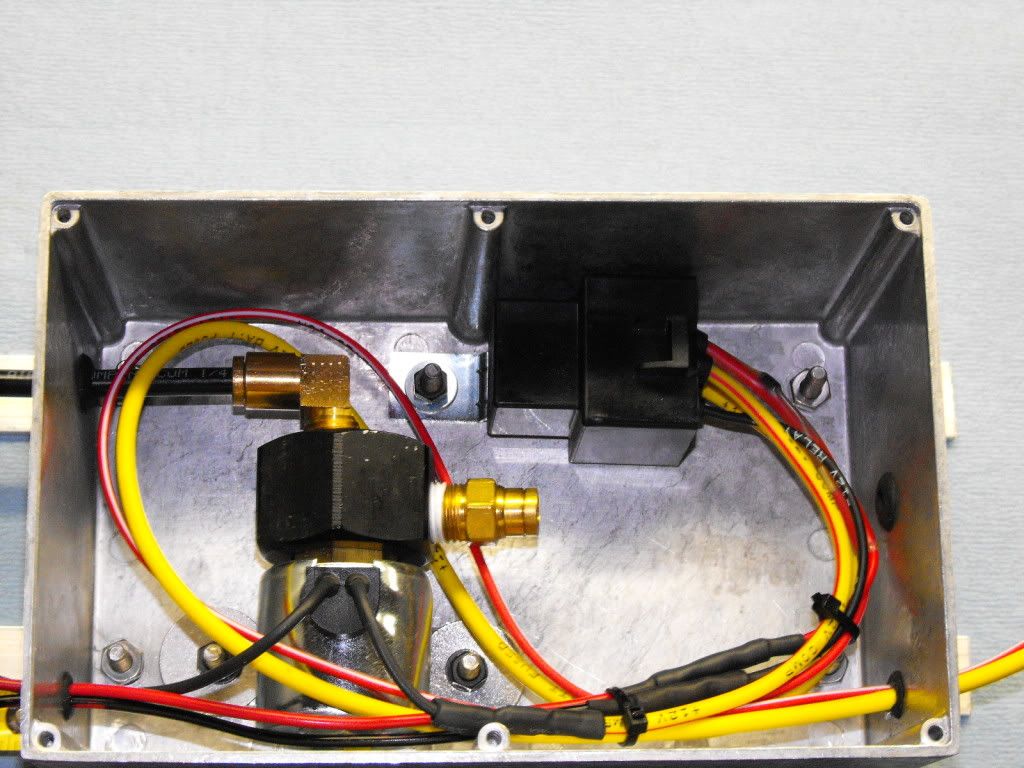

Relay harness and solenoid.


I just want to play - does he ALWAYS work on that truck?

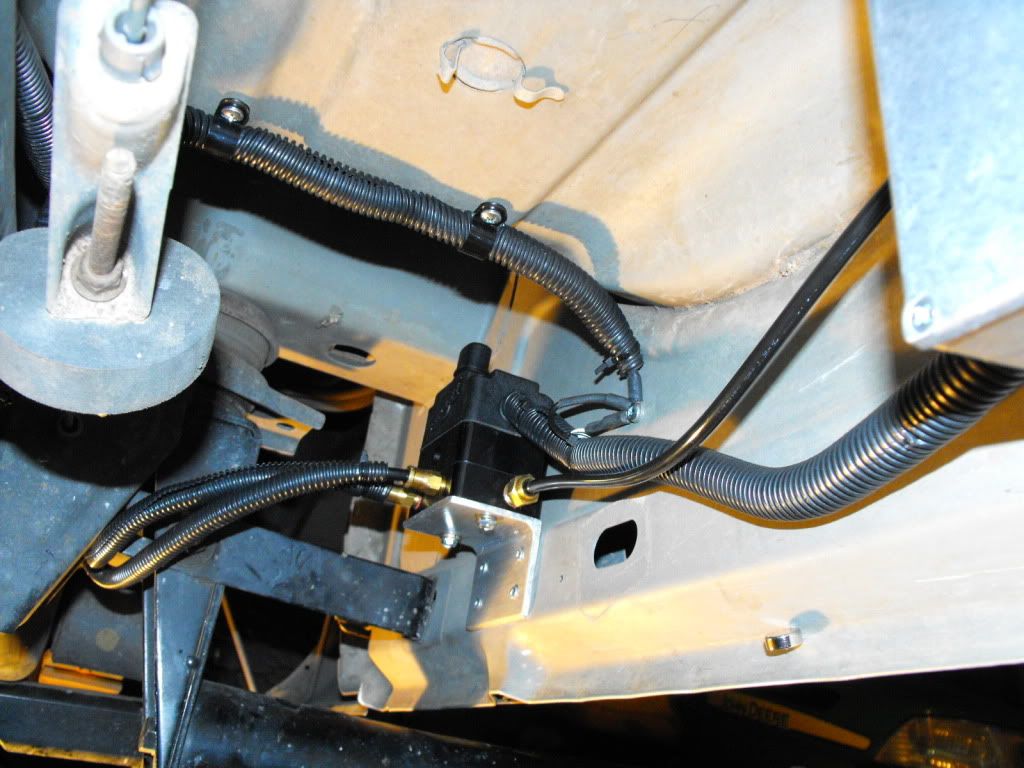

Looking aft, directly at the AirLift Manifold. I double grounded this. The ground wires run from the solenoid and the manifold to the body shell - the conduit at the top of the picture continues the ground to the frame. There is yet another ground wire inside the conduit that runs to the relay harness in the control box. The reason it is not tied to the common ground is because the manifold is actually switched through an independent ground.


Looking forward.

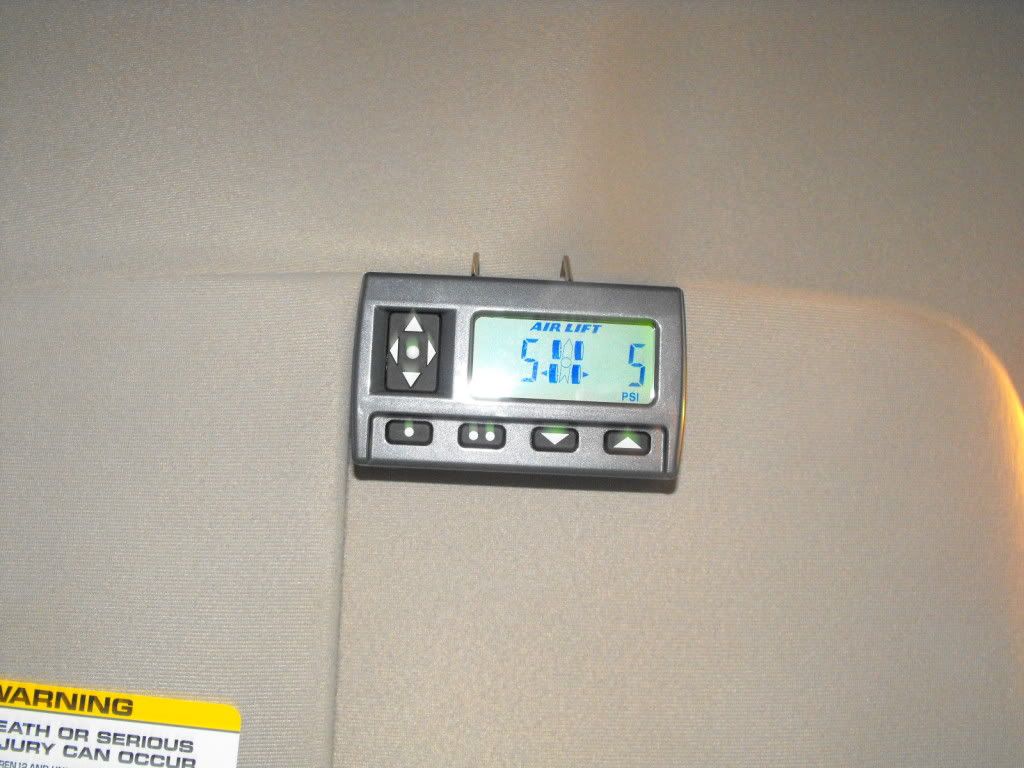

Sun visor mounted remote showing 5 PSI in each air bag. The icon in the middle is a symbol that looks somewhat like a vehicle. When communication is in progress the arrow in the middle progressively flashes over and over from the bottom up to the point.

finis.



·
